Tech Specifications

Bathtub Enclosures

Glass Type

  • 3/16" (4mm) tempered safety glass (Can 2-12. 1-79 National Standard or US Equivalent)
  • Clear or Obscure glass - opaque or raindrop finish
  • Silk Screen: horizontal lined pattern

Framing

  • European Inspired Curved Header Design
  • Anodized aluminum extrusion
  • 1 5/8" (41mm) wall jambs to accommodate acrylic modules
  • Sure-Glide track keeps 2 or 3 panels in place with grooves or channels
  • Frame ColourL Brite #11 chrome or Brite #12 gold
  • Powder Coating: White #17 electrostatic baked enamel finish
  • Water tight seal

Maintenance and Warranty

  • Easy install and easy clean surface
  • No grooves or tracks
  • 10 year limited warranty on parts
  • 1 year labour warranty on installation

Sliding Shower Entry Doors

General Specifications

  • Sliding 2 and 3 panel walk in shower doors
  • Fits 32" (813mm) to 60" (1219mm) opening
  • Standard height 71" (1803mm)
  • Framed or frameless doors

Glass Type

  • 3/16" (4mm), 1/4" (6mm) or 3/8" (10mm) tempered safety glass
  • Can 2-12.1-79 National Standard or US Equivalent, which meets or exceeds all international safety standards
  • Clear or Obscure glass: opaque or raindrop finish
  • Silk Screen: horizontal lined pattern and other patterns

Framing

  • European Inspired Curved Header Design
  • High polished anodized aluminum extrusions
  • Sure-glide track eliminates buildup of soap and dirt in track
  • 1 5/8" wall jambs accommodate most acrylic tub enclosures
  • Powder Coating: White #17 electrostatic baked enamel finish
  • Electrostatically powder painted and baked colour enamel won't chip or crack
  • 1" (254mm) adjustable wall jambs for out of square installations
  • Frame Colour: Brite #11 chrome or Brite #12 gold
  • Water tight seals

Maintenance and Warranty

  • Easy install and easy clean surfaces
  • 10 year limited warranty on parts
  • 1 year labour warranty on installation

Standard Framed Doors and Enclosures

Glass Type

  • 3/16" (4mm) tempered safety glass (Can 2-12.1-79 National Standard or US Equivalent)
  • Clear or Obscure glass: opaque or raindrop finish
  • Silk Screen: horizontal lined pattern

Framing

  • High polished anodized aluminum extrusions
  • 1" (254mm) adjustable wall jambs for out of square installations
  • Frame Colour: Brite #11 chrome or Brite #12 gold
  • Powder Coating: White #17 electrostatic baked enamel finish
  • Water tight seals
  • Fits openings from 19.5" (495mm) - 36.5" (927mm) wide
  • Standard Height is 65 1/4" (1657mm)

Maintenance and Warranty

  • Easy install and easy clean surfaces
  • 10 year limited warranty on parts
  • 1 year labour warranty on installation

Frameless Glass Doors and Enclosures

Tempered Glass

  • Shower door(s) and panels are constructed with clear or obscure glass.
  • 1/4" (6mm), 3/8" (10mm) or 1/2" (12mm) tempered safety glass conforming to CPSC standard or CAN 2-12.1-79 Federal Specfications DD-G-1403B.
  • All exposed edges polished and rounded.
  • All holes and notches to be drilled prior to the tempering process.
  • Tempered glass has greater resistance to thermally induced stress than heat-strenghtened or annealed glass.

Aluminum Channels and Hardware

  • Extruded aluminum components are #6463-T5 alloy
  • 3/4" (18mm) deep profile suitable for 3/8" (10mm) or 1/2" (12mm) tempered glass
  • Buffed and bright dip anodized or powder coat painted
  • Screws or fasteners are stainless steel to prevent rust or corrosion

Hinges

  • Hinges on heavy glass products are constructed of #320 stainless steel or solid brass.
  • Product guaranteed to last the lifetime of the enclosure with little risk of degradation or discolouration.
  • Most hinges are self centering within 15 degrees of closed position.
  • Hinges contain a reversible 5-degree pivot pin to provide a tighter closure into the shower interior.
  • CRL Frameless Shower Door Hinges
  • Hinge Size, Weight tolerance and width maximum are outlined below.
Hinge Type 2 Hinge 2 Hinge 3 Hinge 3 Hinge
Glass
Thickness
width
Max
Weight
Max
Width
Max
Weight
Max

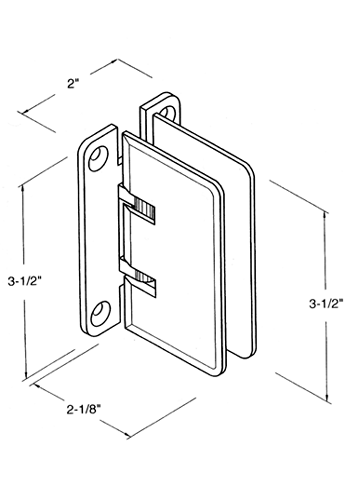

Wall Mount
Wall Mount
Wall Mount
3/8" (10mm)
1/2" (12mm)
28"
26"
80lbs
80lbs
30"
30"
120lbs
130lbs

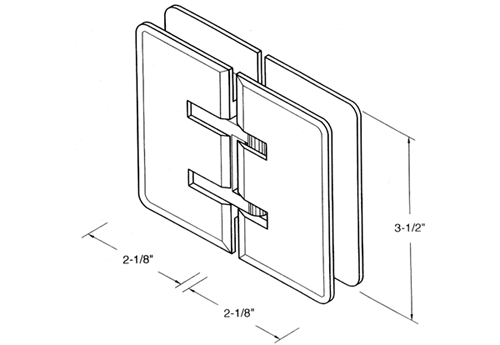

180° Glass-to-Glass
180° Glass-to-Glass
180° Glass-to-Glass
3/8" (10mm)
1/2" (12mm)
28"
26"
80lbs
80lbs
34"
30"
120lbs
130lbs

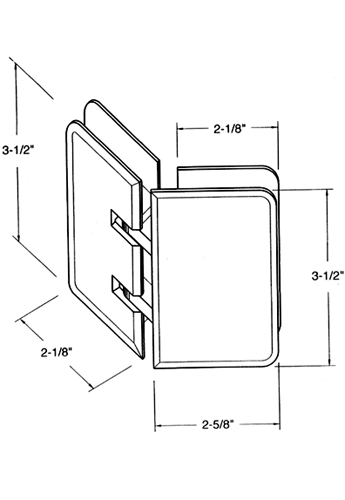

135° Glass-to-Glass
135° Glass-to-Glass
135° Glass-to-Glass
3/8" (10mm) 28" 80lbs 34" 120lbs
(Neo Angle) 1/2" (12mm) 26" 80lbs 30" 130lbs
